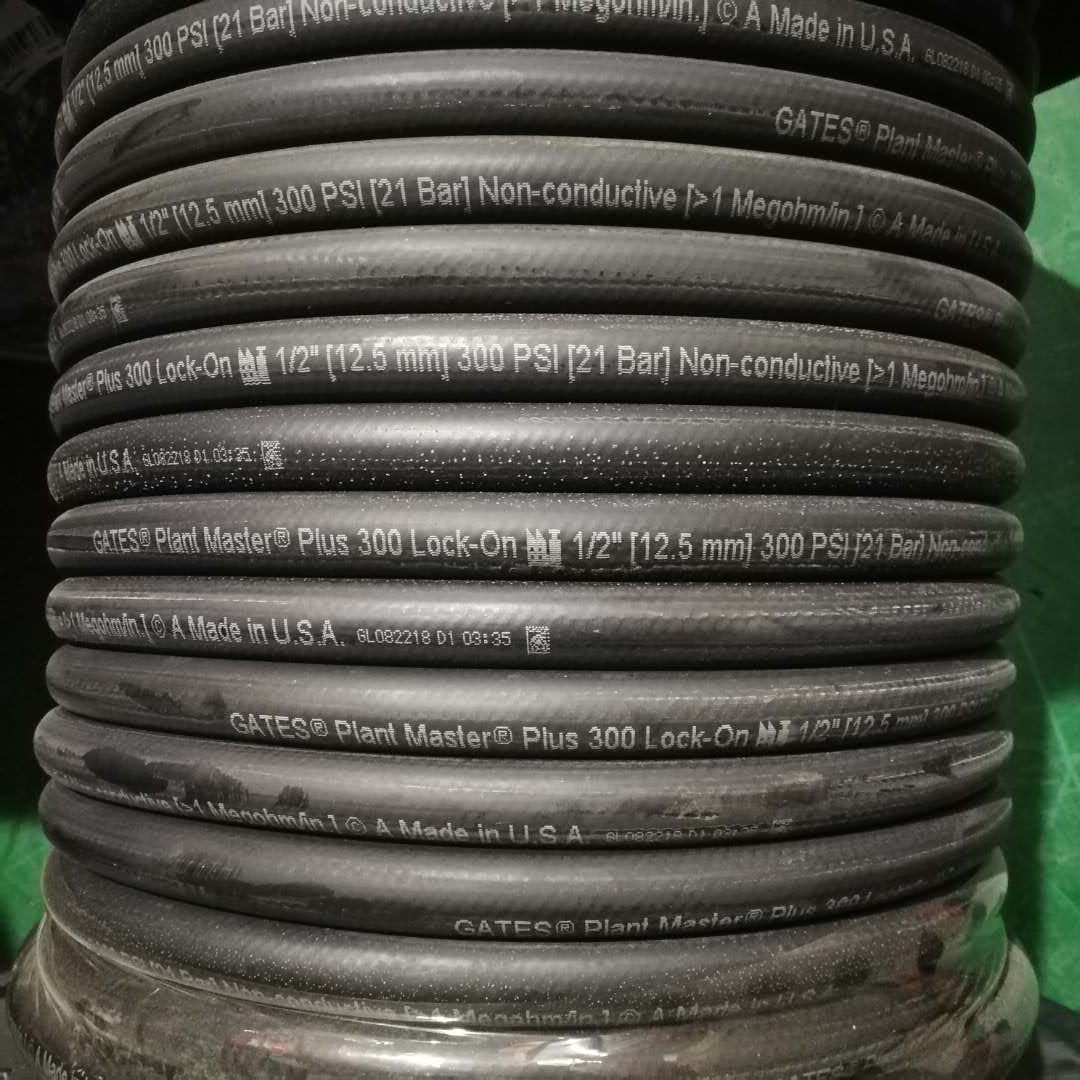

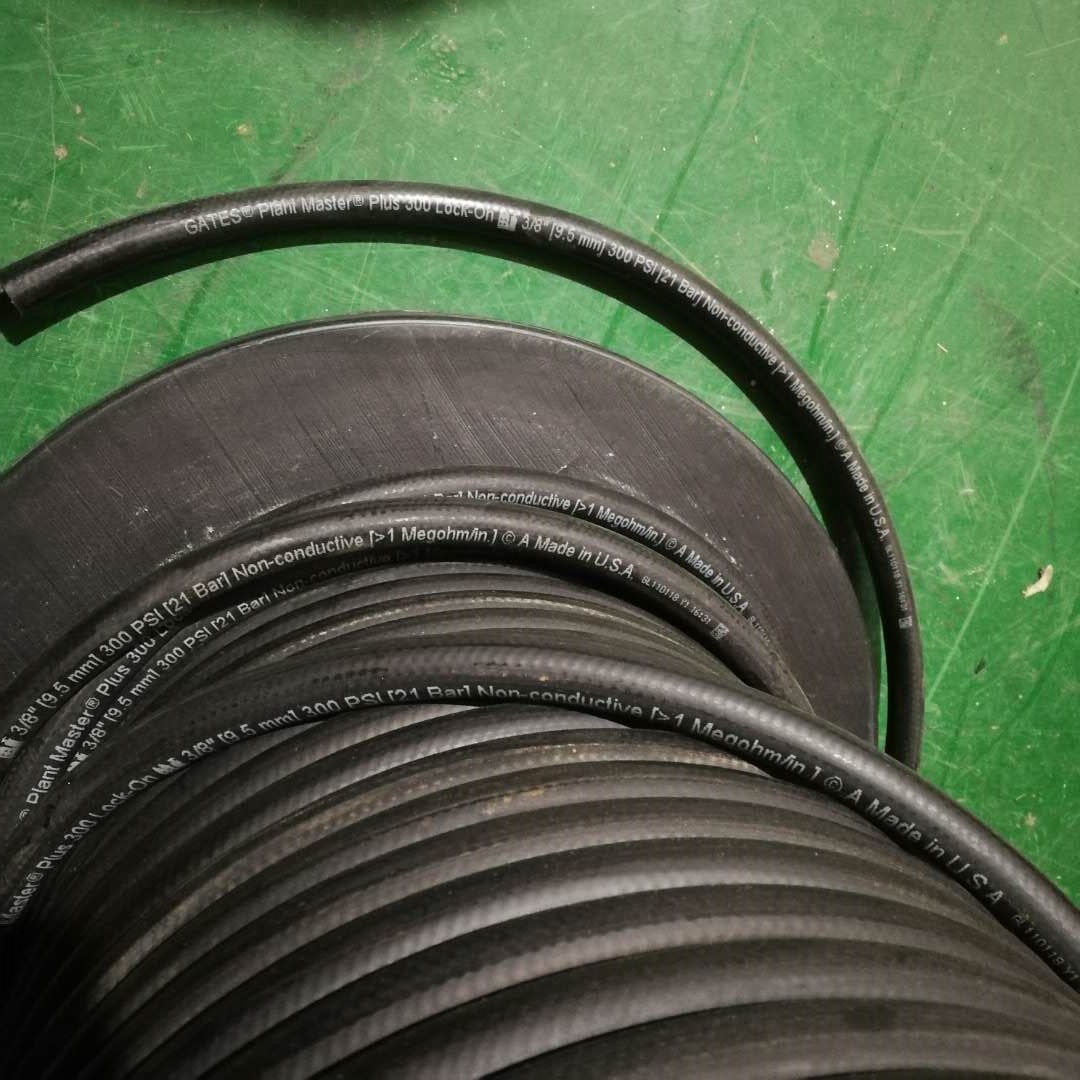

即插式軟管、快插式軟管相比扣壓式軟管的特點
|
|
管子柔軟，非常利于現(xiàn)場布管
|
|
接頭不用扣壓，現(xiàn)場裁切，插入接頭即可，不用卡箍固定，安裝十分方便
|
|
連接牢靠不會泄露、拔頭
|
|
用料比扣壓式減少50%，助力碳達峰碳中和
|
|
接頭全壽命設計，可重復使用，助力碳達峰碳中和
|
應用于直流輸電換流閥純水冷卻設備、新能源發(fā)電變流器純水冷卻設備、柔性交流輸配電晶閘管閥純水冷卻設備、大功率電氣傳動變頻器
純水冷卻設備以及各類水冷設備的控制系統(tǒng)。
RECOMMENDED FOR: Air, water, oils, antifreeze solutions and applications where Lock–On fittings are used.
CAUTION: Hose is not recommended for applications where vibrations or pressure surges exist. Do not use oil for Lock–On fitting
insertion purposes. Not recommended for gasoline or diesel fuels.
TEMPERATURE: –20°F to +212°F (–29°C to +100°C) normal service. For air: +160°F (+71°C) only. For water emulsion, see Gates
Hydraulic Hose Catalog #35093.
CONSTRUCTION: Tube: Type C (Nitrile). Black.
Reinforcement: Aramid tensile cord.
Cover: Type A (Chloroprene). Black.

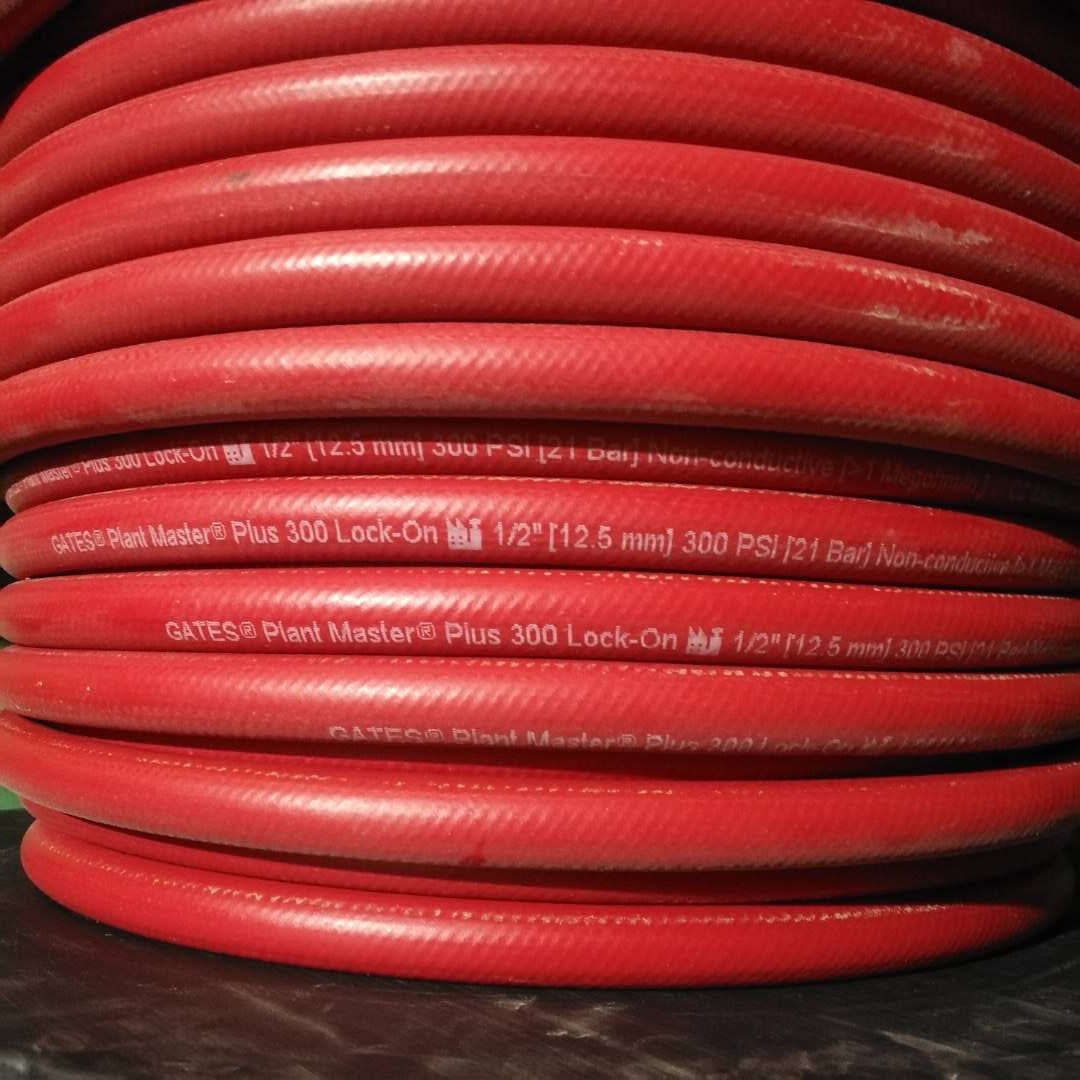

Type C2 (Modified Nitrile). Blue, red, yellow, green or gray.
Design Factor: 4:1
COUPLINGS: 75 Gates GLX®, 83 Gates Lock–On Couplings. NOTE: Do not use clamps with Lock–On fittings. Reference the Hose
Coupling Section.
STANDARDS: Non–conductive (>1 Megohm/in.).
Storage and use may adversely affect electrical resistance.
Tube: ARPM (Class A) High oil–resistance.
Cover: ARPM (Class B) Medium oil–resistance.
